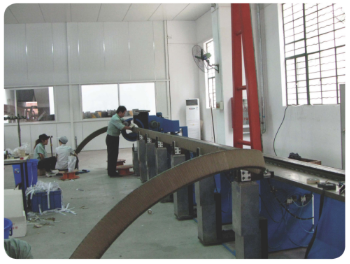

ZCN017C-7000 Linear Taping Machine for Steam Generator Coil

Technical Specifications:

1、Copper rods to be held by mechanical hands, holding force of the hands:150kg

2、Max. taping section: 110×35mm²

3、Tape width 25mm, half overlapping 12.5mm, double taping 6.25mm (pitch is adjustable for CNC frequency half-overlapping)

4、Max. straight part:7m, min. 2.2m, 7 mechanical hands

5、A pair of simulation constant tension tape disc (for mica tape, few adhesive tape); a pair of general adjustable tension tape disc (for medium adhesive tape, much adhesive tape)

6、Speed: 60~200r/min, frequency variable speed control

7、Taping speed 8 times faster than manual operation, good quality
