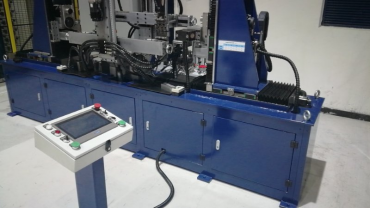

ZCN091TJ-X (1000、1500) Open Coil CNC Forming Machine

Technical Specifications:

1、Total length scope of the fusiform coil or open coil: 500~1800mm.

2、Coil linear side:400~1000mm. End projection length after forming: 65-333mm

3、Max. included angle between two linear sides: 0~70° separately adjustable for front/rear angle, total angle 0~90°.

4、Total width of coil opening (pitch): 100-500mm.

5、Coil section (width×height): 5~15mm×10-45mm, with 2 chucks at front/ rear each.

6、Coil nose pin diameter: φ10, φ20, φ30.

7、Coil nose part slanting: 0~20°. Ejecting nose part height: 0~120mm.

8、Top arc height: 0-60mm. Use the servo motor to swing the top arc.

9、Forming precision: opening on the Forming Machine <±0.25mm~±0.75mm, angle ±0.5°. The rebound can be set by compensation.

10、Color touch screen: 10", automatic CNC control. Hydraulic pump station system pressure: 8Mpa.
