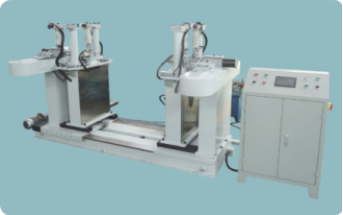

ZCN093 Winding-type Motor Rotor Coil Forming Machine

Technical Specifications:

1、Suitable for wind power inserted-type rotor coil bar, wind power embedded-type rotor coil bar, forming at a time for one end or two ends' big turning angle, small turning angle and coil bar curve;

2、CNC adjust the wire rod's end length and straight line length, data can be stored, 10" color touch screen, high performance PLC control;

3、Wire rod ends forming total length: ≥2000mm;

4、Wire rod straight part length: 500-2000mm;

5、Wire rod copper bar section size (width× height): (3~10mm)×(10~40mm);

6、Max. power: 10kw, max. oil pressure 1-6.3MPa.
