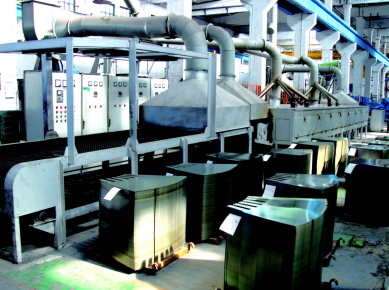

ZCN062-190, 380 Motor Stamping Painting Machine

Technical Specifications:

1、Silicon sheet thickness: 0.3~0.5mm, silicon sheet width: 40~1100mm

2、Conveyance belt speed: 1~8m/min, stepless speed regulation

3、Processing stove power: 190kw, oast length 6m, max. temp. of heating stove: 100~350℃

4、A set of environment protecting equipment: smoke-disposal equipment by water spraying, water circulating system, smoke-suction pipeline, fan pipeline, blower, valve, etc. (self-managed by client or sign order separately, each factory has different situation, estimated environment protection equipment RMB 260,000~280,000)

5、Also has ZCN062-380: power 380kw, oast length 10m, speed 1~12m/min

6、Also has Hydrosolvent Painting Machine of ZCN062A-190, 380
