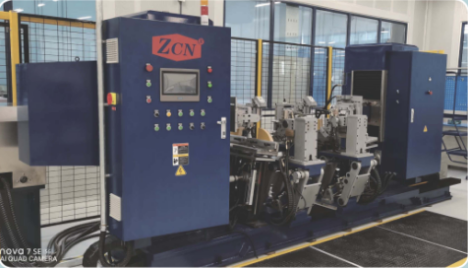

ZCN091DG-F Wind-power Fusiform CNC Coil Forming Machine

General descriptions:

1、This equipment is used for AC special motor stator frame coil's forming, it can finish the forming of the medium and small wind-power coil.

2、The wind-power coil's section is large and the end is short, that needs the big coil forming force, so the clips are special, they can only use the structure of entering into the clamped coil up & down.

3、The nose clip of the wind-power coil adopts the principle of open-close type, which is the nose clip structure suitable for both wind-power coil and conventional coil.

4、If necessary, the straight part of the big arm should be supported by a brace to prevent the coil's straight part from shrinking.
