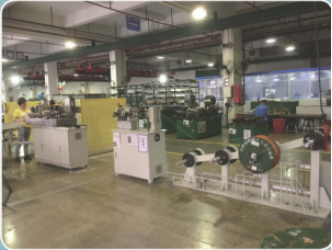

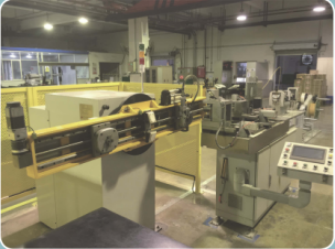

ZCN08AATZ-2200 CNC Cutting & Dragging Constant Tension Automatic Complete Winding Equipment

Technical Specifications:

1、Adopt full-digital servo control method, all the parameters input, adjust, save through the touch screen;

2、Winding can be single or multiple pieces together, max. winding number 8 pieces, with transposition function;

3、Automatic winding: automatic coil on, counting, automatic cutting; winding process has the function of manual, automatic, pause, emergency shutdown, etc;

4、Pay-off uses constant tension wire, can realize the pay-off tension's free set and automatic control, the sensor detect the coil reel's distance, automatic feedback to adjust the tension, the wire tension keep constant in the winding process after setting. Each wire's tension 0~60kg adjustable. The electromagnetic coil reel max.200kg;

5、Only need to start the button after coil reel clamping, then the equipment can automatically complete coil winding according to the parameters, after the automatic completion of winding, the coil automatically loosen, the equipment state reset;

6、Accurate feeding length, fault alarm and auto-stop, smooth operation with low noise, etc;

7、Coil bobbin pitch: 400~2200mm, coil max. length 2330mm, coil min. length 500mm;

8、Coil bobbin diameter: 10, 20, 30mm (nose pin radius R5, R10, R15);

9、Coil cross-sectional area: height 16~65mm, width 5~15mm;

10、Wire gauge: wire thickness1-8mm, wire width 2.5-15mm;

11、Wire lead length 100~1100mm, machine head's center height from floor: 1350mm;

12、Dimensional precision after winding: ±0.5mm, with counting function: max. recordable number of turns 999;

13、Main axis speed (stepless speed regulation): 0-16rpm, main axis maximum load: 1000kg;

14、Winding Machine max. tension 600kg, torque (16rpm) 6000Nm, principal axis has brake, fix position exactly.
