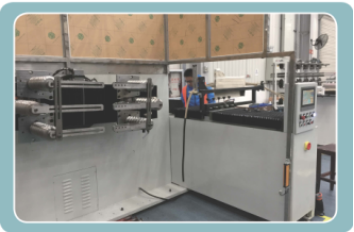

ZCN089 Automatic Mould CNC Round Scattered Wire Slot-jumping Complete Winding Equipment

Technical Specifications:

1、Adopt digital control, coil's main technic parameter set, change and save through the touch screen;

2、Automatic combine the adjustable winding mould, for different size of coil winding, only need to change the parameter on the touch screen according to the drawing;

3、Has two control forms of manual and automatic; Coil loading and unloading is convenient and quick;

4、Wire bundling mechanism has the tension control system to protect wire bundling and tension control to realize the constant tension in the winding process; air pressure: 0.1-0.6MPa;

5、With function of automatic alarm for disconnection, any wire strand lack of material; Has the automatic fault alarm and stop function;

6、Wire gauge: φ0.8-2.6mm; max. duplex winding wire number: 20/40/60; Wire lead length 100-1100mm;

7、Winding machine variable frequency adjustable speed 5-50r/min, frequency control of motor speed; Winding machine has the count function: max. record number of turns is 999, automatic stop;

8、Winding machine's max. torque is 6000NM, main axis has brake with accurate positioning. Winding machine head's max. load: 700kg;

9、Automatic winding mould opening:fusiform opening W: 120~550mm adjustable, straight line length L: 250~800mm adjustable, length A: 45~320mm length can be adjusted separately. Fusiform length L+2A: 340-1450mm adjustable;

10、Automatic guide line displacement device's moving distance: 0~600mm.
