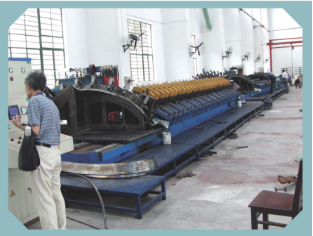

ZCN070-2500, 4000, 6000, 8000 Multi-head Hydraulic Shaping Machine for Wire Rod of Steam Generator

Technical Specifications:

1、Line length 2.5~8m, stepless adjusting (different moulds canbe put in), there's one pressing head each 250~300mm

2、End part length about 1.35m

3、Special device equipped between line part and end part to remove the heat deforming

4、Hydraulic pump station pressure adjustable between 2~20Mpa, automatic pressure maintaining

5、Each horizontal pressing head max. 10t, each vertical pressing head max. 7t. Horizontal cylinder withstands temperature 140℃, vertical cylinder withstands 100℃

6、Operated by buttons to control the control cabinet of the whole set of the equipment

7、Bending mould and inter-turn hardening mould will be designed and quoted separately

8、Price of big current heating equipment to be discussed separately
