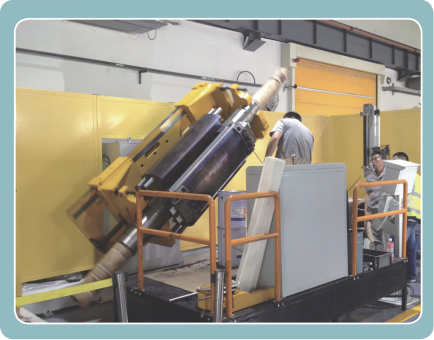

ZCN096-5 (3) 5T (3T) Salient-pole Rotor CNC Winding Machine

Technical Parameter:

1、 Power of the main winding spindle of the rotor winder: 37KW (22KW), total power of the others 4KW, totally 40KW (26KW).

2、 Rotor winding machine's main winding spindle provides output: using torque 6000 N*m. Main spindle bears rotor weight up to 5000KG (3000KG).

3、 The winding machine achieves the back to zero, positioning, variable speed winding by the main winding spindle. The main spindle is operated by a foot switch for positive and negative rotation. Frequency conversion speed regulation 0~12 RPM.

4、 The maximum winding electromagnetic wire (enameled copper wire) section is 9.5mm×3.5mm.

5、 Maximum force of the constant tension is 80kg, adjustable during 1~80kg.

6、 Japanese Mitsubishi series PLC, servo motor and man-machine control touch screen are adopted. All the parameters are input, adjusted and saved through the touch screen, more than 300 sets of parameters can be stored.

7、 The machine is controlled by the man-machine interface touch screen PLC during winding. The ball guide has a light and correct displacement and is composed of an automatic wiring winding machine with other winding parts.

8、 The maximum length of the rotor is 2000mm (1500mm), the maximum diameter of the rotor is 800mm(700mm) and the maximum load of the rotor is 5 tons (3 tons).
