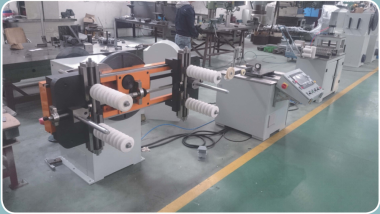

ZCN08AEMN-20、40、60 20、40、60-head Round Scattered Wire Single-axis CNC slot-hopping winding machine

Technical Specification:

1、Center height: 800mm, torque: max. 1250NM. Main axis with brake.

2、Winding speed: 0~80rpm, start & stop with variable frequency speed regulation. Smooth & stable stop. Counting: 0~999.

3、Tension: 1.5~10KG, adjustable. Wire gauge: φ0.6~φ3.6mm, 1~12 pieces of winding wire.

4、There has the slot-jumping device between the tension adjustment device and the main machine, after setting the servo motor, automatic wire arranging, slot-jumping for winding.

5、CNC winding mould has the servo motor CNC fixing length, direction, size and the automatic retraction function, easy to remove the coil; max. wire mould straight line length 1150mm, width max. 880mm, min. end part’s width size is determined by the template.

6、With the automatic alarm function for lack of the wire, that is, in the winding process, one plate of the electromagnetic wires ends, when passing the alarm device for the wire lack, the device starts, alarming while the winding stops.
