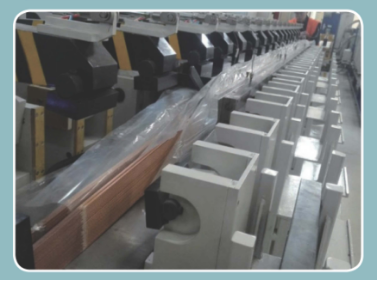

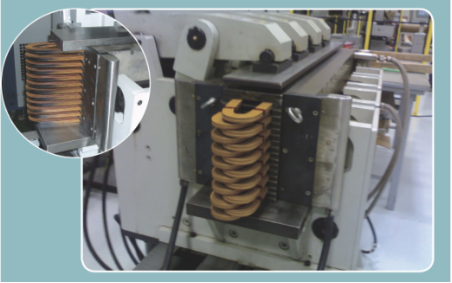

ZCN074-2000 Spindle Coil Line Cooling Hot Press

Technical Specifications:

1、 Pressing opening: 260×270mm, without heating board (decided by client); 136×270mm, with heating board

2、 Max. pressing distance: 1600mm, with 1800mm heating cooling board. Spindle part max. length: 2000~2200mm

3、Hydraulic head no: 4 pieces

4、Each pressing head's common pressure:

● horizontal low oil pressure: 0~4 Mpa, ▲ pressure: 47 KN

● horizontal high oil pressure: 4~24 Mpa, ▲ pressure: 285 KN

● vertical low oil pressure: 0~4 Mpa, ▲ pressure: 35 KN

● vertical high oil pressure: 0~20 Mpa, ▲ pressure: 211 KN

5、Heating temperature: 50~250℃, adjustable and settable

6、Water cooling temperature: 5~10℃, auto-cycle
