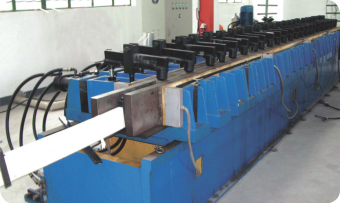

ZCN074-6 Double Function Heating Press for Slot Insulation Copper Bar Inter-turn of Steam Generator Rotor

Technical Specifications:

1、Power: 6kW

2、Heating power: 90kW, 20 pcs. of heating boards in various sizes

3、Length: 6m

4、Hydraulic pump station pressure adjustable between 2~20Mpa, automatic pressure maintaining

5、One set of oil cylinder per 250mm, including one vertical-pressed, one horizontal-pressed

6、Temp.: 120~200℃, silicon controlled automatically (machine length: 2.5, 3.5, 4, 6, 7, 8m)

7、Can equip with auto cooling cycle system, cooling water temperature 5~10℃
